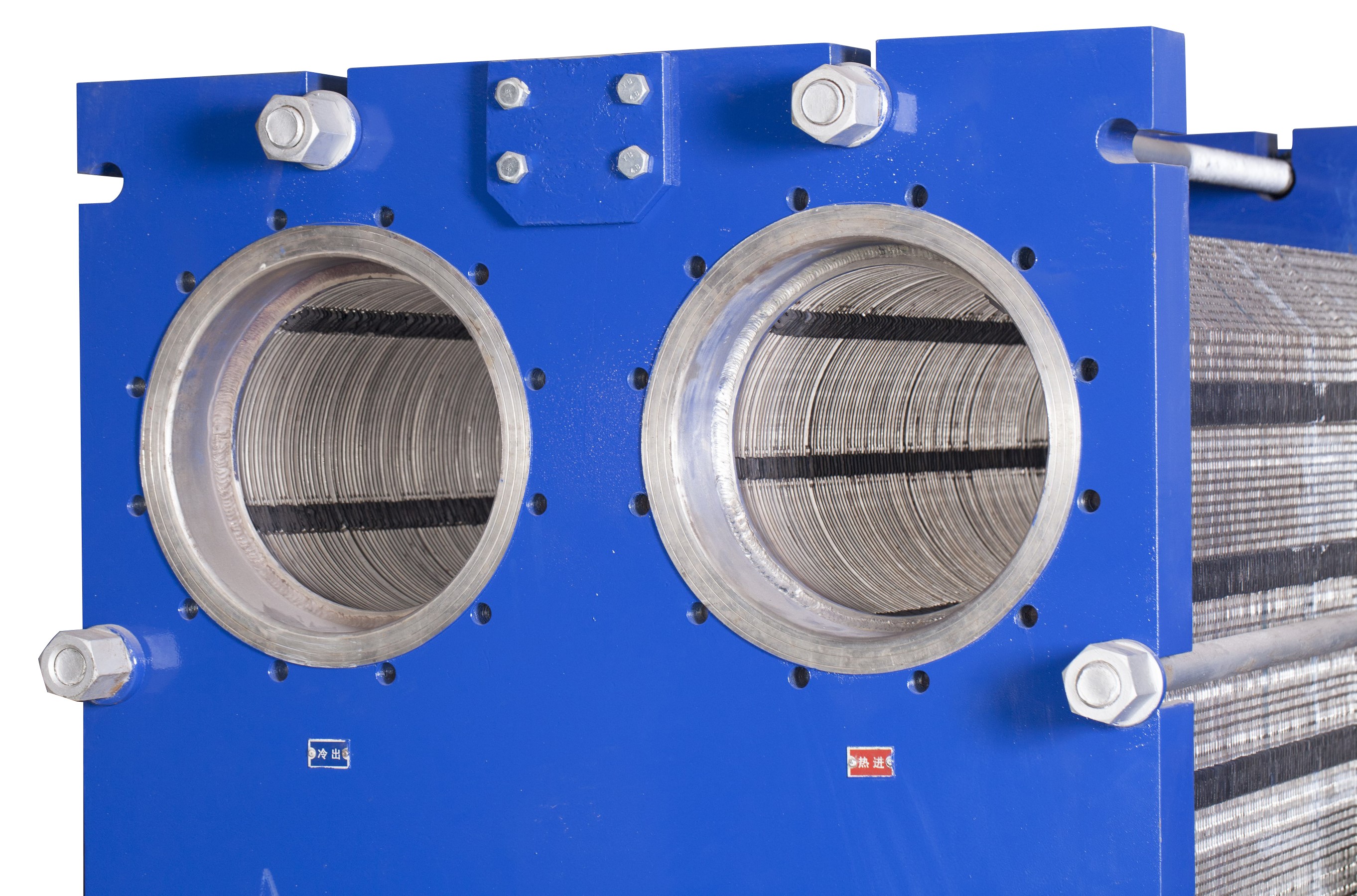

Plate heat exchanger

Main Features of Plate Heat Exchangers:
1. High Heat Transfer Efficiency: The heat transfer coefficient of a plate heat exchanger is typically between 3000-6000 W/m²·K·°C, which is 3-5 times higher than that of other heat exchangers.
2. Compact Structure: Plate heat exchangers have a small footprint, saving on infrastructure investment. They offer the largest effective heat exchange area per unit volume and are lightweight.
3. Easy to Disassemble and Clean: Generally, disassembly, cleaning, and reinstallation can be completed within a day.
4. Capable of Pure Counterflow Heat Exchange: This maximizes the use of the temperature difference between the two fluids, with a heat recovery rate of over 95%. They are highly capable of handling small temperature differences, making them ideal for low-temperature heat recovery and summer air conditioning applications, where other heat exchangers may not be suitable.
5. No Insulation Required: The heat loss is less than 1%, eliminating the need for additional insulation.

分享

推荐




I. Overview of Plate Heat Exchangers
   1) The plate heat exchanger, characterized by high heat exchange efficiency, low material flow resistance loss, compact structure, sensitive temperature control, large operational flexibility, easy assembly and disassembly, and long service life, is currently the most advanced high-efficiency and energy-saving heat exchange equipment in China.
   2) Plate heat exchangers have been widely used in various industrial sectors such as metallurgy, mining, petroleum, chemical, power, pharmaceutical, food, chemical fiber, light textile, papermaking, shipping, and centralized heating.
   3) The types of plate heat exchangers are increasing, their technical performance is continuously improving, and their application range is becoming broader.

II. Working Principle of Plate Heat Exchangers:
    A plate heat exchanger is a detachable heat exchange device composed of many corrugated heat transfer plates, which are pressed together at certain intervals through rubber gaskets. During assembly, the plates are arranged in two alternating groups, and the rubber sealing strips are fixed between the plates with an adhesive to prevent fluid leakage and form narrow, mesh-shaped flow channels between the plates. The heat transfer plates are pressed into various corrugated shapes to increase the surface area and rigidity, and to enable the fluid to form turbulence at low flow rates, thereby enhancing the heat transfer effect. The four corner holes on the plates form the distribution and collection pipes for the fluid, and the two heat exchange media flow into their respective channels, forming either counterflow or parallel flow to exchange heat through each plate.

III. Main Features of Plate Heat Exchangers:
   1. High Heat Transfer Efficiency: The heat transfer coefficient of a plate heat exchanger is typically between 3000-6000 W/m²·K·°C, which is 3-5 times higher than that of other heat exchangers.
   2. Compact Structure: It occupies a small footprint, saves on infrastructure investment, has the largest effective heat exchange area per unit volume, and is lightweight.
   3. Easy to Disassemble and Clean: Generally, it can be disassembled, cleaned, and reinstalled within the same day.
   4. Capable of Pure Counterflow Heat Exchange: It fully utilizes the temperature difference between the two fluids, with a heat recovery rate of over 95%. It has the strongest capability to handle minimal temperature differences, making it suitable for low-temperature waste heat utilization and summer air conditioning heat exchange, where other heat exchangers would not be adequate.
   5. No Insulation Required for the Heat Exchanger: Its heat loss is less than 1%.

IV. Structural Principle of Plate Heat Exchangers:

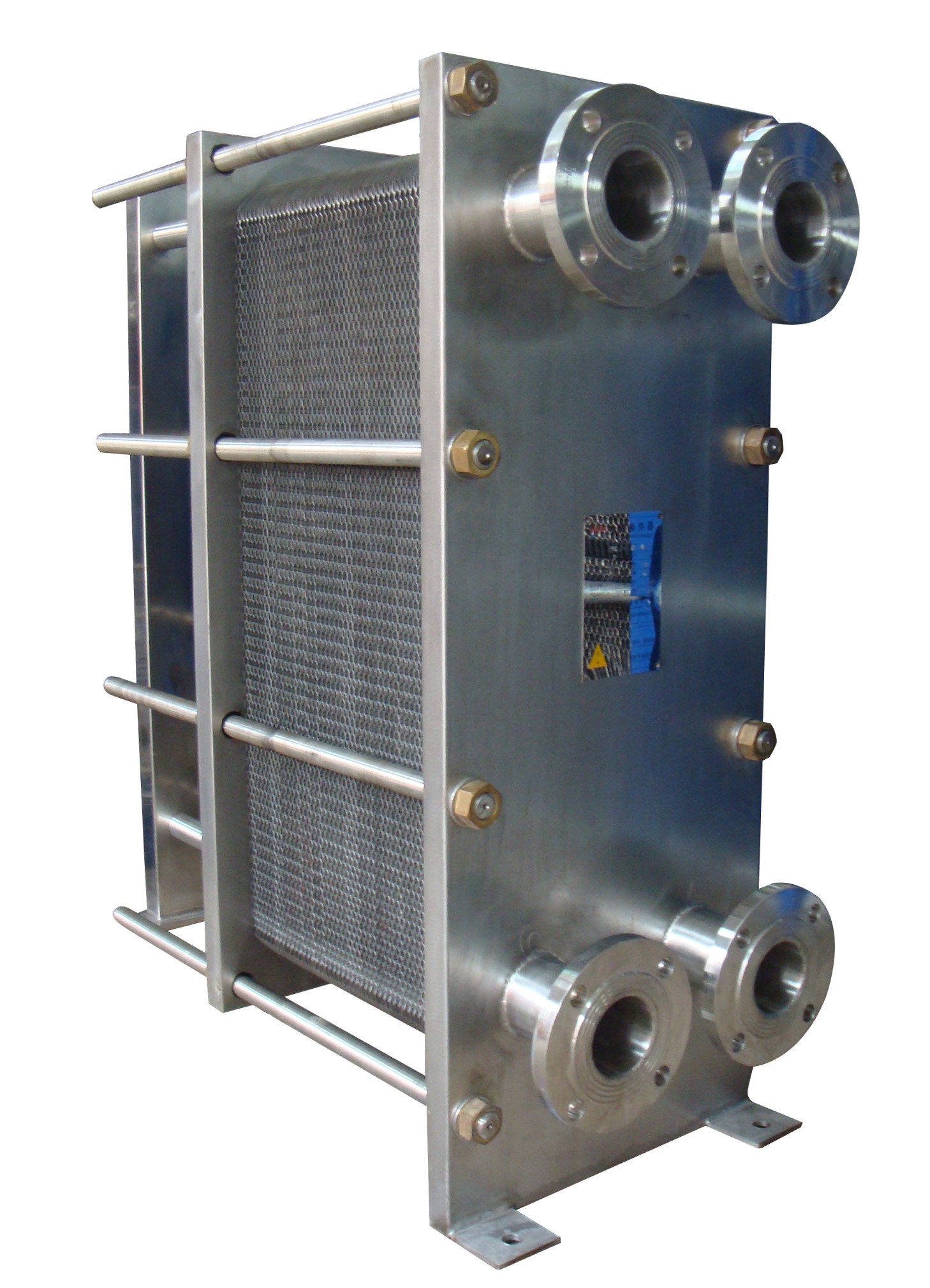

     The BR type plate heat exchanger is composed of many metal thin plates stamped with corrugated grooves, which are sealed around the edges with gaskets and overlapped and clamped together with a frame and tightening bolts. The four corner holes of the plates and gaskets form the distribution and collection pipes for the fluid, and also effectively separate the hot and cold fluids, allowing them to flow through the channels on either side of each plate, thereby facilitating heat exchange through the plates.

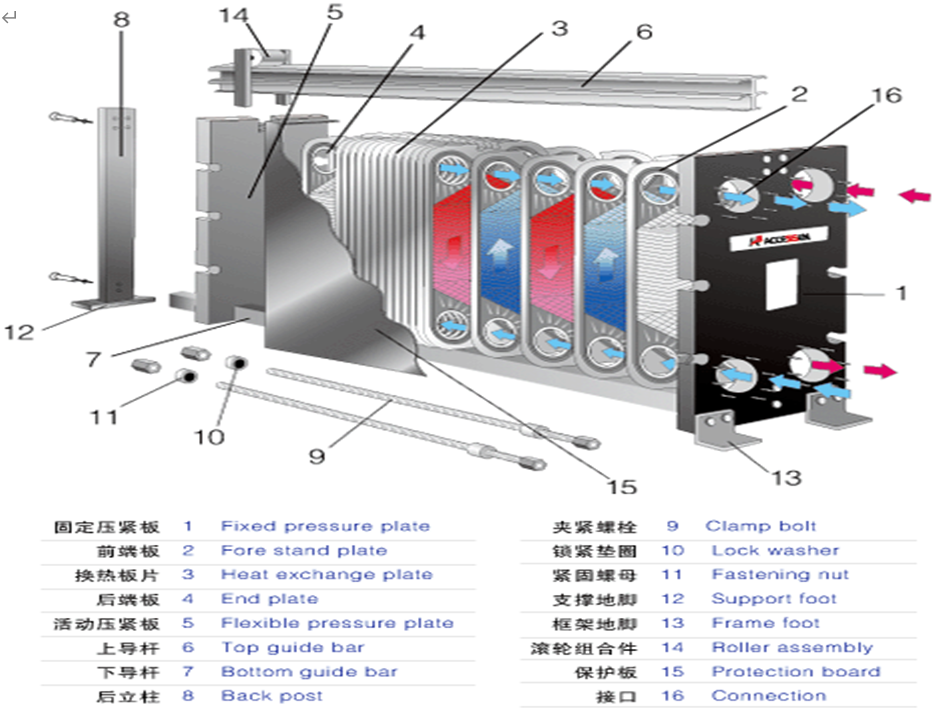

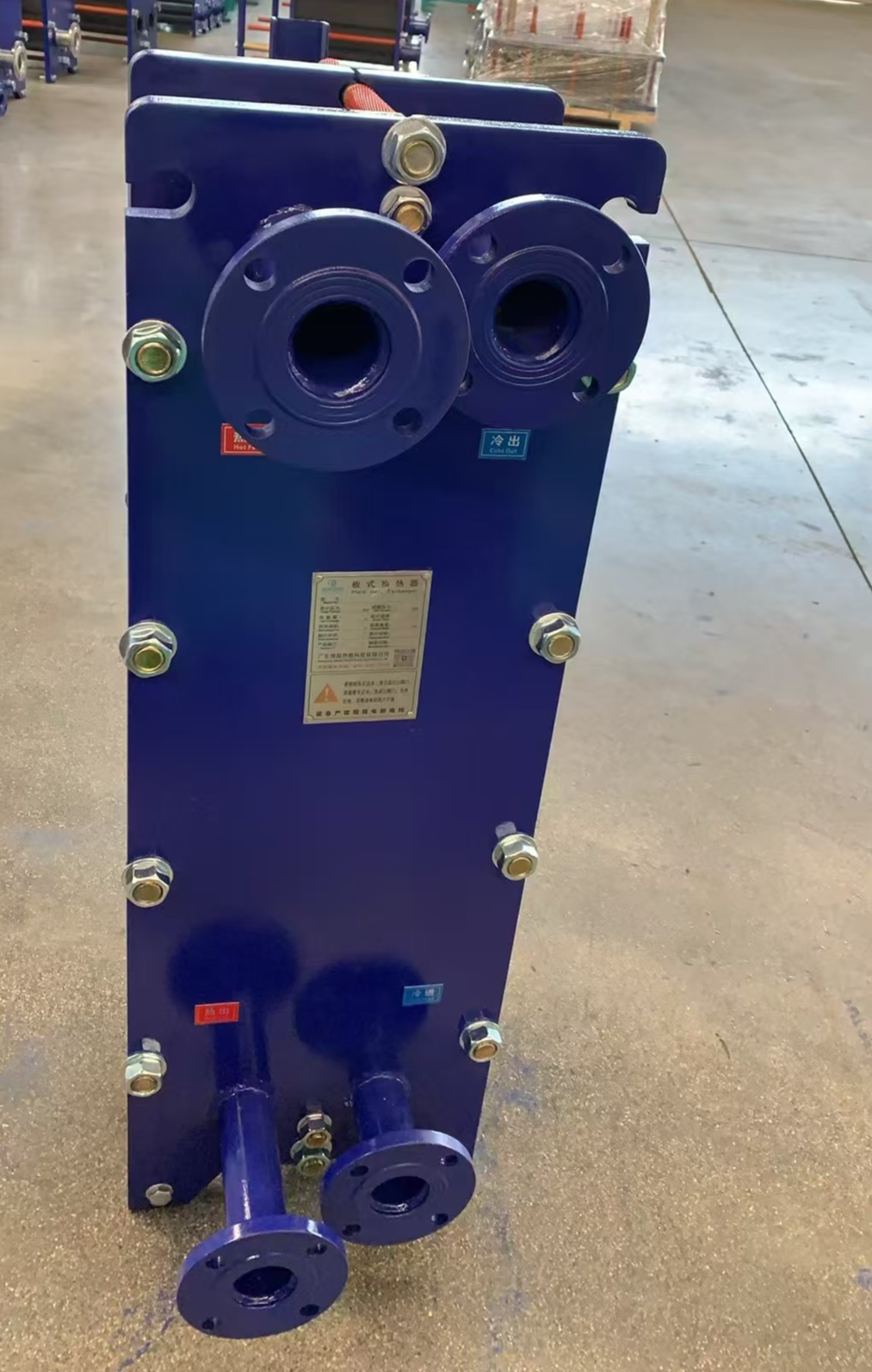

V. Functions of Some Components:

   1 Fixed Compression Plate: Does not come into contact with the fluid. After being secured with clamping bolts, it compresses the gasket to ensure sealing.

   5 Moving Compression Plate: Used in pairs with the fixed compression plate, it can slide on the guide rods to facilitate assembly, disassembly, inspection, and maintenance.

   6, 7 Upper and Lower Guide Rods: Bear the weight of the plates and ensure the installation dimensions, allowing the plates to slide between them. The guide rods are usually longer than the heat exchanger plate pack to allow for the loosening of the clamping bolts, sliding of the plates for inspection and cleaning, and enabling the moving compression plate or intermediate separator to slide on the upper and lower guide rods for assembly, disassembly, inspection, and maintenance.

   9, 11 Clamping Bolts and Nuts: Clamp the plate pack together, integrating the heat exchanger and ensuring sealing. For rubber seals, the nameplate usually indicates the maximum and minimum clamping dimensions. When the clamping reaches the minimum dimension, the gasket should be replaced.

   10 Lock Washer: Prevents fluid synthesis or leakage and distributes it between different plates.

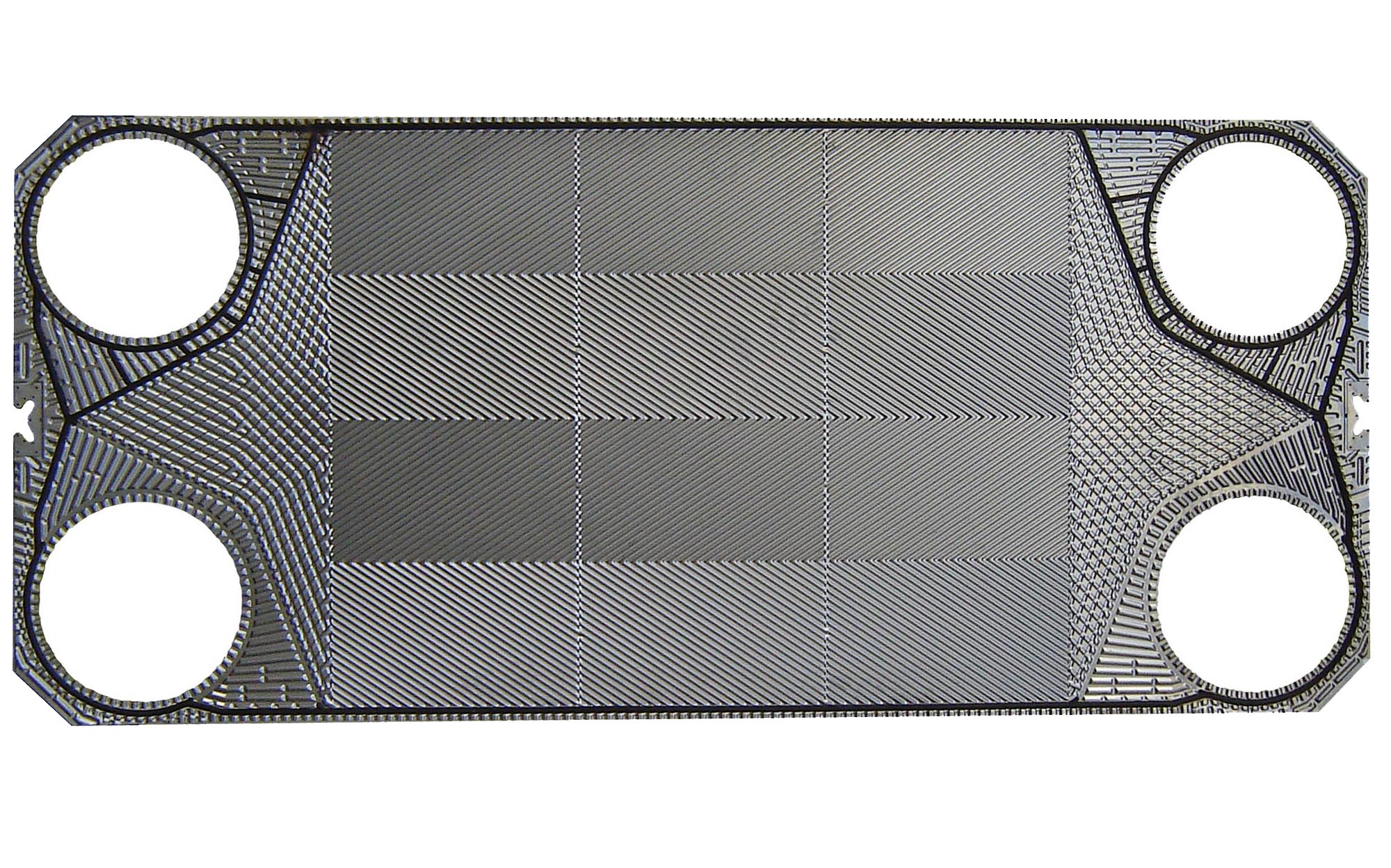

   4 Heat Exchanger Plates: Provide the medium flow channels and heat exchange surfaces.

   13 Frame Feet: Support the weight of the heat exchanger, integrating the entire unit.

   16 Connections: Provide inlet and outlet for the fluid.

VI. Design Features of Plate Heat Exchangers:
   1. High Efficiency and Energy Saving: The heat transfer coefficient ranges from 3000 to 4500 kcal/m²·°C·h, which is 3 to 5 times higher than that of shell-and-tube heat exchangers.
   2. Compact Structure: The plates in a plate heat exchanger are tightly arranged, resulting in a smaller footprint and occupied space compared to other types of heat exchangers. A plate heat exchanger with the same heat exchange capacity is only 1/5 the size of a shell-and-tube heat exchanger.
   3. Easy to Clean and Assemble: The plate heat exchanger is clamped together by bolts, making it easy to disassemble and clean at any time. The smooth plate surfaces and high turbulence also prevent fouling.
   4. Long Service Life: Made from stainless steel or titanium alloy plates, the plate heat exchanger can withstand various corrosive media. The gaskets can be easily replaced, and the unit is convenient for maintenance and disassembly.
   5. High Adaptability: The plates are independent components that can be added or removed as required, offering various configurations to suit different process requirements.
   6. No Fluid Contamination:The plate heat exchanger has a drainage channel in the sealing groove to prevent fluid mixing. In the event of a leak, the medium is always expelled outward.
Applications of Plate Heat Exchangers:
        Plate heat exchangers are widely used in industries such as metallurgy, mining, petroleum, chemical, power, pharmaceutical, food, chemical fiber, papermaking, light textile, shipping, and heating. They are suitable for heating, cooling, evaporation, condensation, sterilization, heat recovery, and other processes. Specific applications include the manufacture of titanium dioxide, alcohol fermentation, synthetic ammonia, resin synthesis, rubber manufacturing, cooling phosphoric acid, cooling formaldehyde water, alkali carbonide industry, electrolytic alkali production in the chemical industry; cooling quenching oil, cooling electroplating solutions, cooling gear lubricants, cooling rolling mills, and wire drawing machine cooling fluids in the steel industry.

VII. Disassembly and Assembly Procedure for Plate Heat Exchangers:
      1. Before disassembly, measure the clamping length of the plate pack and record it for reference during reassembly.
      2. Remove the clamping bolts and all heat exchanger plates.
      3. Remove the sealing gaskets from each plate. To prevent damage with a screwdriver, use liquid nitrogen to rapidly cool and deform the rubber gaskets for easy removal.
      4. Clean the residual adhesive from the sealing grooves and remove dirt from the plates.
      5. Inspect the heat transfer plates for cracks or perforations using light or penetration methods. Check for dents or deformations.
      6. Repair or replace damaged plates.
      7. Reassemble the unit. Before assembly, clean the sealing grooves with acetone and use adhesive No. 401 to horizontally position and attach the sealing strips.
      8. Press the plates with sealing strips in groups of 50 using a 20-30 mm thick steel plate. Cure for 24 hours at an ambient temperature of 30-35°C before hanging the plates.
      9. After hanging the plates, lightly attach the end covers and thread the fixing bolts.
      10. Tighten the bolts evenly with a torque wrench.
      11. Measure the total length of the clamped plate pack.
      12. Install the inlet and outlet liners.
      13. Perform a hydraulic test. First, blind the inlet pipe of one side of the plate pack and fill it with water. Then, install a blind plate with a vent tube on the outlet pipe of the working medium channel on the other side, and attach a pressure gauge to the test side. Pressurize with a hand pump to 1.5 times the operating pressure and maintain for 30 minutes. If the pressure does not drop, the external pipes can be connected.

VIII. Plate Heat Exchanger Units:
       Consist of two circulation systems: the cold-side circulation system and the hot-side circulation system. The cold-side circulation system comprises a circulating water pump, radiators, pipes, valves, etc. The hot-side circulation system consists of hot-side pipes, valves, and a boiler system. The two circulation systems exchange heat through the plate heat exchanger, transferring heat from the hot-side circulation system to the cold-side circulation system, which is then distributed to residential rooms via radiators.
